Temperature range: -30℃~+70℃, 0~100%RH
Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃), ±3%RH
Run Days: Max.180 days

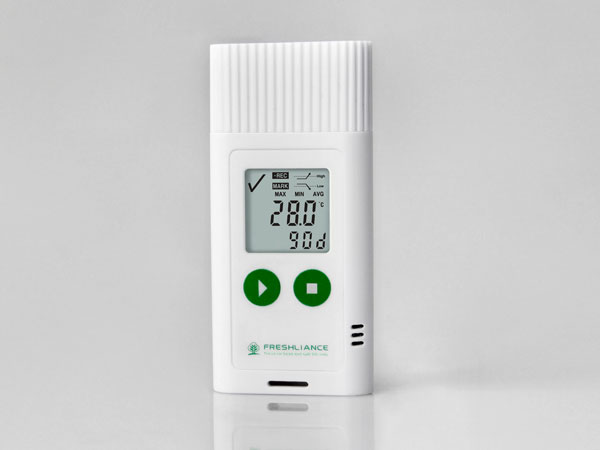

TagPlus-TH Temperature and Humidity Data Logger with LCD screen for easy viewing of temperature and humidity data. In this device, professional users can configure parameters before use.
TagPlus-TH Temperature and Humidity Data Logger complete trip history temperature and humidity data logging and downloading as an encrypted report with summary data, charts and tables, the report can be read directly on the PC at the destination. To avoid loss of reports, reports can be reused after downloading. It will automatically stop recording when the memory is full. The thermometer has a battery drain reminder and a reconfiguration reminder to ensure time accuracy.
1. Replaceable battery, up to 180 days of battery life, then the battery can be replaced.
2. LCD screen displays all parameters, maximum value, minimum value, average temperature value and high/low alarm curve.
3. Provides ad-hoc reports, ad-hoc mode allows the USB Thermograph to continue working after the user has generated and read an ad-hoc report.
4. Automatically generate reports in PDF/CSV/PDF+CSV format with graphs and tables, no cables or readers required.
5. CE, RoHS, EN12830, comply with EN12830, can be used for transportation, storage and distribution of food.
6. To avoid loss of reports, reports can be reused after downloading. It will automatically stop recording when the memory is full. The thermometer has a battery drain reminder and a reconfiguration reminder to ensure time accuracy.
7. The temperature unit can be switched, Celsius (°C) and Fahrenheit (°F) can be switched freely.
8. Large memory capacity, to the maximum. 35000 readings for PDF report only; maximum. 20,000 readings in PDF and CSV reports.
| Model | Tagplus-TH | Type | Reusable |
| Temperature Range | -30℃~+70℃ | Temperature Accuracy | ±0.5℃ at full range (-30℃ to +70℃) |
| Humidity Range | 0~100%RH | Humidity Accuracy | ±3%RH |
| Resolution | 0.1℃, 0.1%RH | Memory Capacity | 35000 readings PDF only, 20000 readings PDF & CSV |
| Report Format | PDF/CSV/PDF&CSV | Run Days | Max.180 days |
| Report Output | Automatic, no software needed | Connection | USB, NFC (optional) |
| Compatible OS | Windows, Mac | Logging Interval |
1 minute-24 hours |
| Start Delay | 0 minute-24 hours | Protection Grade | IP65 |
| Battery | 3.0V CR2032 lithium battery | Parameters Configurable | Yes |
| Dimension | 82mm*39mm*13.5mm | Weight | 29.3g |
| LCD Screen Display | Temperature value, Max/Min/Average value, Out of alarm range symbol, High/Low alarm curve, Battery level | ||
TagPlus-TH Temperature and Humidity Data Logger for Transport Refrigerators are very important for cold chain transportation of perishable products, especially food. Environmental conditions of temperature-sensitive products must be carefully monitored and documented during handling and storage to ensure food safety, quality and longer shelf life, especially for highly perishable products such as agricultural products, dairy products, seafood, Meat, poultry and flower products.
