Atlas Log-TH Multi-use Temperature and Humidity Data Logger

Temperature range: -40℃~+85℃, 0~100%RH

Temperature Accuracy: ±0.5℃ F.S., ±3% RH

Run Days: Max. 180 days per battery

The Atlas Log-TH Multi-use Temperature and Humidity Data Logger is a multi-use temperature and humidity data logger with LCD screen. The USB thermal imaging camera has a high resolution temperature range from -30 to 70°C.

Introduction

Atlas Log-TH Multi-use Temperature and Humidity Data Logger with up to 35,000 readings and real-time temperature display. The parameters can be freely configured on the configuration software provided by our company. This temperature data logger with probe can directly generate irreversible data reports in PDF/CSV format without any software.

Features

1. Online software configuration, parameters can be freely configured on the configuration software.

2. Replaceable battery, up to 180 working days. Batteries are replaceable for repeated use.

3. Set freely according to needs, up to 6 alarm points can be set. You can get up to 9 tokens.

4. Password protection, you can set a password to prevent unauthorized operations on the device.

5. With high accuracy, the external probe can measure the temperature from -40℃ to +85℃, and the accuracy can reach ±0.5℃ F.S..

6. The LCD screen displays all parameters, operating status, current temperature, alarm status, battery power, alarm point, maximum, minimum and average temperature values.

7. Ad hoc reports are provided, and the ad hoc mode allows this temperature data logger to continue working after the user generates and reads an ad hoc report. Use the configuration software to check the current data information.

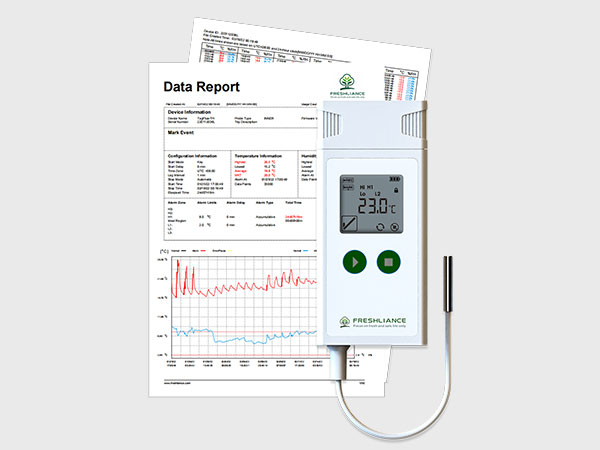

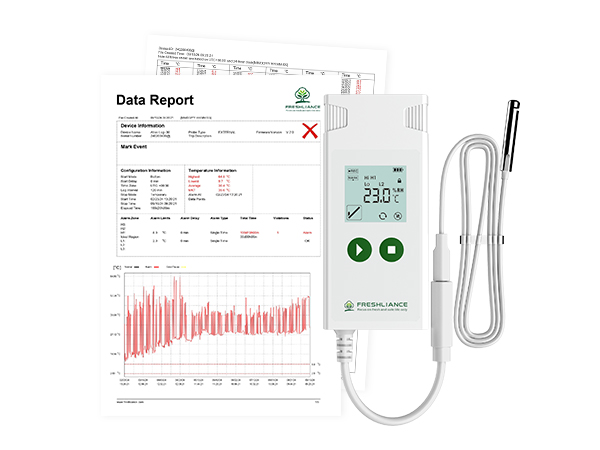

8. Automatically generate reports in PDF/CSV/PDF+CSV format with graphs and tables, no cables or readers required.

9. LCD alarm indication and buzzer alarm, once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen, and the buzzer will emit a 60-decibel alarm sound at a distance of 3m.

10. The temperature unit can be switched, Celsius (°C) and Fahrenheit (°F) can be switched freely.

11. Large memory capacity, to the maximum. 35000 readings for PDF report only; maximum. 20,000 readings in PDF and CSV reports.

Specification

Model

Atlas Log-TH Type Reusable
Run Days

Max. 180 days per battery

Memory Capacity

PDF: Max. 35000 readings;

PDF&CSV: Max. 20000 readings

Temperature Range

-40℃~+85℃

Temperature Accuracy

±0.5℃ F.S.

Humidity Range

0~100%RH

Humidity Accuracy

±3% RH

Alarm Type

LCD screen display

LCD Screen Display

Normal, Alarm, Max/Min/Average Temperature Value, Running Status

Resolution

0.1℃

Logging Interval

1 minute-24 hours

Start Delay

0 minute-24 hours

Report Format

Automatic PDF/CSV report

Connection

USB, NFC (optional)

Compatible OS

Windows, Mac

Battery

CR2450

Dimension

96mm*44mm*15mm

Protection Grade

IP65

Certification

CE, ROSH, EN12830

Applications

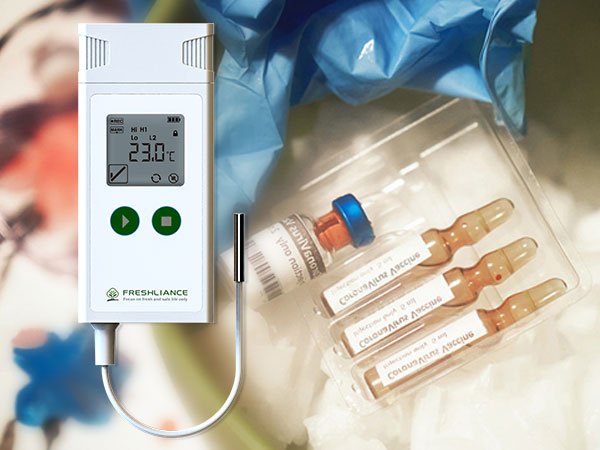

Atlas Log-TH Multi-use Temperature and Humidity Data Logger can be used in a wide range of applications such as sea or air freight, distribution, storage and freezing, pharmaceutical, frozen food, sea containers, etc. This product is a multi-purpose temperature and humidity data logger with an external probe that can be used for in-transit records of biopharmaceuticals, life sciences, biological samples, blood cold chains, diagnostic reagents, including biological reagents, molecular reagents, COVID-19 reagents, and low temperature environments under Cellular Biologics.
