Atlas Log-IUT Multi-use Dry Ice Temperature Data Logger

Atlas Log-IUT Multi-use Dry Ice Temperature Data Logger

Temperature range: -90℃~70℃

Temperature Accuracy: ±0.5℃(-30℃～+70℃),±1.0℃(Others)

Run Days: Max. 90 days

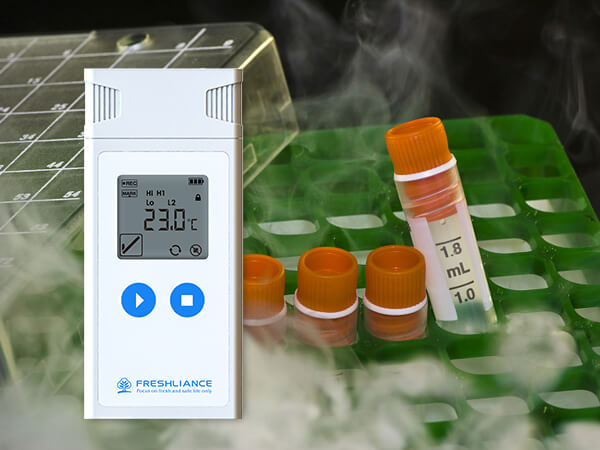

The Atlas Log-IUT Multi-use Dry Ice Temperature Data Logger requires no external probes and can measure temperatures from -90°C to +70°C. This temperature data logger is equipped with an LCD display to view real-time temperature data.

Introduction

Atlas Log-IUT Multi-use Dry Ice Temperature Data Logger capacity reaches the maximum. 35000 readings. Professional users can use the configuration software to configure parameters, and an encrypted report can be automatically generated after the trip is completed. Ad hoc mode allows the device to continue working after the user generates and reads an ad hoc report.

Features

1. The parameters are configurable, and the parameters can be freely configured through the configuration software.

2. With replaceable batteries, its batteries can work for up to 180 days. Batteries can be replaced and reused.

3. Up to 6 alarm points can be set, and up to 9 marks can be made.

4. Password protection, you can set a password to prevent others from operating the device without authorization.

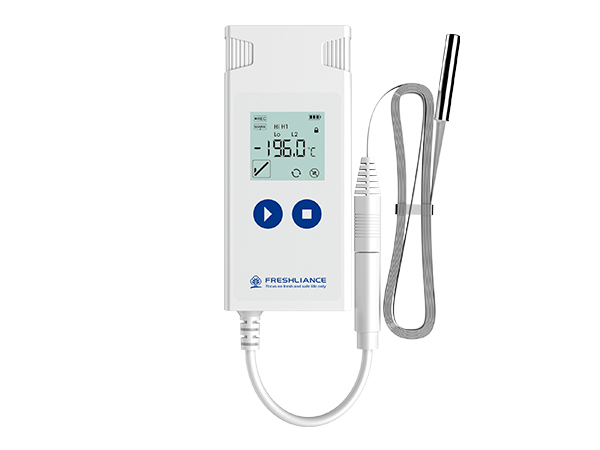

5. High precision, the external probe can measure the temperature from -90℃ to +200℃ with high precision.

6. LCD displays all parameters: normal, alarm, maximum/minimum/average temperature values, operating status, and battery level.

7. Ad hoc reports are available, Ad hoc mode allows the device to continue working after the user generates and reads an ad hoc report. The current data information can be read through the configuration software.

8. Automatically generate PDF/CSV/PDF+CSV reports with charts without additional software.

9. LCD alarm indication, once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen

10. The temperature unit can be switched, Celsius (°C) and Fahrenheit (°F) can be switched freely.

11. Large memory capacity, to the maximum. 35000 readings for PDF report only; maximum. 20,000 readings in PDF and CSV reports.

Specification

Model	Atlas Log-IUT	Type	Reusable
Temperature Range	-90℃~70℃	Temperature Accuracy	±0.5℃(-30℃～+70℃),±1.0℃(Others)
Run Days	Max. 90 days
Memory Capacity	PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings
Alarm Type	LCD screen display
LCD Screen Display	Normal, Alarm, Max/Min/Average Temperature Value, Running Status
Resolution	0.1℃	Logging Interval	1 minute-24 hours
Start Delay	0 minute-24 hours	Report Format	Automatic PDF/CSV report
Connection	USB, NFC (optional)	Compatible OS	Windows, Mac
Battery	3.6V	Dimensions	96mm44mm15mm
Protection Grade	IP65	Certifications	CE, ROSH, EN12830

Applications

The Atlas Log-IUT Dry Ice Multi-use Temperature Data Logger is ideal for the pharmaceutical and biologics industries. It can monitor and control temperature changes during storage and transportation in time. It can be used for continuous recording of biopharmaceuticals, life sciences, biological samples, pharmaceutical cold chains, vaccine cold chains, blood cold chains, and diagnostic reagents (including biological reagents, molecular reagents, covid-19 reagents, and cell biology reagents). Low temperature environment.
