Temperature range: -90℃~+200℃ (external probe)
Temperature Accuracy: ±0.5℃(-90℃~+70℃)/±1℃(others)
Run Days: Max. 90 days
The Atlas Log-90 Multi-use Ultra Low Temperature Data Logger is a multi-purpose, configurable, battery-replaceable temperature logger with an external probe that can monitor temperatures from -30°C to +70°C, -90°C to +200°C and -200°C to +90°C rated temperature ranges.
The Atlas Log-90 Multi-use Ultra Low Temperature Data Logger is equipped with an LCD display for viewing real-time temperature data. The Product can store up to 35,000 readings. Users can use the configuration software to configure parameters, and an encrypted report can be automatically generated after the trip is completed. Ad hoc mode allows the device to continue working after the user generates and reads an ad hoc report.
1. The parameters are configurable, and the parameters can be freely configured through the configuration software.
2. With replaceable batteries, its batteries can work for up to 180 days. Batteries can be replaced and reused.
3. Up to 6 alarm points can be set, and up to 9 marks can be made.
4. Password protection, you can set a password to prevent others from operating the device without authorization.
5. High precision, the external probe can measure the temperature from -90℃ to +200℃ with high precision.
6. LCD displays all parameters: normal, alarm, maximum/minimum/average temperature values, operating status, and battery level.
7. Ad hoc reports are available, Ad hoc mode allows the device to continue working after the user generates and reads an ad hoc report. The current data information can be read through the configuration software.

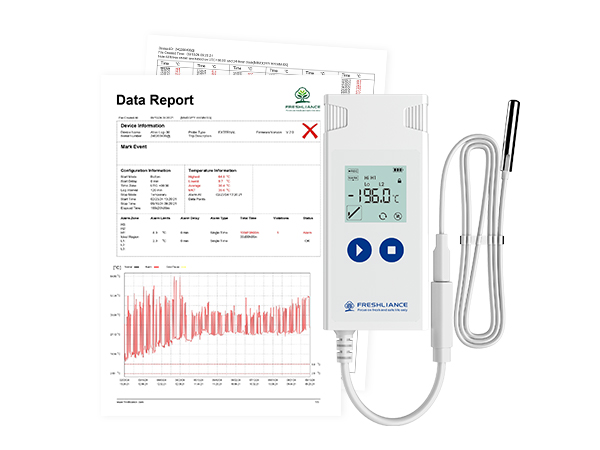

8. Automatically generate PDF/CSV/PDF+CSV reports with charts without additional software.
9. LCD alarm indication, once the temperature exceeds the preset alarm range, the alarm symbol (x) will be displayed on the LCD screen
10. The temperature unit can be switched, Celsius (°C) and Fahrenheit (°F) can be switched freely.
11. Large memory capacity, to the maximum. 35000 readings for PDF report only; maximum. 20,000 readings in PDF and CSV reports.
|
Model |
Atlas Log-90 |
Type |
Reusable |
|
Run Days |
Max. 90 days
|
||
|
Memory Capacity |
PDF: Max. 35000 readings; PDF&CSV: Max. 20000 readings | ||
|
Temperature Range |
-90℃~+200℃ (external probe) | ||
|
Temperature Accuracy |
±0.5℃(-90℃~+70℃)/±1℃(others) |
||
|
Alarm Type |
LCD screen display, buzzer (about 60dB at 3m)
|
||
|
LCD Screen Display |
Normal, Alarm, Max/Min/Average Temperature Value, Running Status
|
||
|
Resolution |
0.1℃ |
Logging Interval |
1 minute-24 hours
|
|
Start Delay |
0 minute-24 hours |
Report Format |
Automatic PDF/CSV report
|
|
Connection |
USB, NFC (optional) |
Compatible OS |
Windows, Mac
|
|
Battery |
CR2450 |
Dimensions |
96mm*44mm*15mm
|
|
Protection Grade |
IP65 |
Certifications |
CE, ROSH, EN12830
|
Atlas Log-90 Multi-use Ultra Low Temperature Data Logger is used for ultra-low temperature recording and monitoring in cold storage, cold chain transportation, and dry ice storage environments. Atlas Log temperature data loggers are ideal for the pharmaceutical and biologics industries. It can be used for continuous recording of biopharmaceuticals, life sciences, biological samples, pharmaceutical cold chains, vaccine cold chains, blood cold chains, and diagnostic reagents (including biological reagents, molecular reagents, covid-19 reagents, and cell biology reagents).
