Temperature range: -30℃~+70℃, 0~100%RH
Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃), ±3.0%RH
Run Days: 200 days
BlueTag TH20 HACCP Bluetooth Temperature and Humidity Data Logger is an intelligent Bluetooth temperature and humidity data logger based on Bluetooth communication technology. This Bluetooth temperature logger has a high-resolution temperature range of -30°C to +70°C. It comes with up to 65000 readings with true temperature and humidity display.
BlueTag TH20 HACCP Bluetooth Temperature and Humidity Data Logger through the Bluetooth App software provided by Xinlian, you can quickly and accurately set the parameters of the product. Through the APP Bluetooth connection, the temperature data can be read through the mobile phone APP. The Bluetooth temperature monitor has passed CE, CE-RED, and complies with EN12830 food transportation, storage and distribution standards.

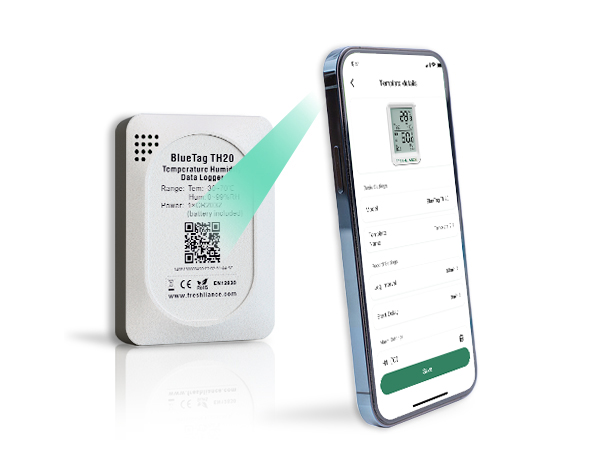

1. Using the Bluetooth App software provided by our company, you can quickly and accurately set various parameters. The data logger has a built-in magnet and the included sticker has a built-in magnet so it can be attached to a wall or other ferrous surface.
2. The Bluetooth HACCP temperature and humidity data logger uses button batteries to create a 13mm ultra-thin body. Ultra-low power consumption electronic screen, working time up to 200 days. Batteries are replaceable for repeated use.

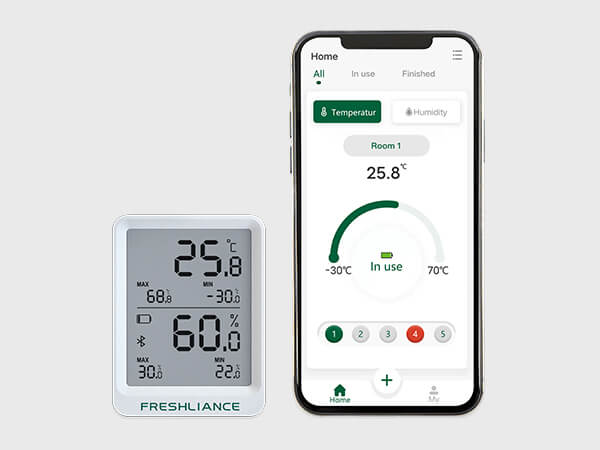

3. Large-screen real-time temperature and humidity display, real-time viewing of current temperature and humidity, maximum/minimum temperature and humidity values, and battery power.
4. The built-in HACCP temperature sensor can measure the temperature from -30°C to 70°C, and the accuracy can reach ±0.5℃ at full range (-30℃ to +70℃). Suitable for multiple scenarios. Up to 65,000 memory capacity.
5. Once the temperature exceeds the preset range, you will receive a notification on your mobile phone. This temperature and humidity data logger can help you adjust the situation of your house, warehouse, laboratory, museum or cold chain transportation in a timely and effective manner.

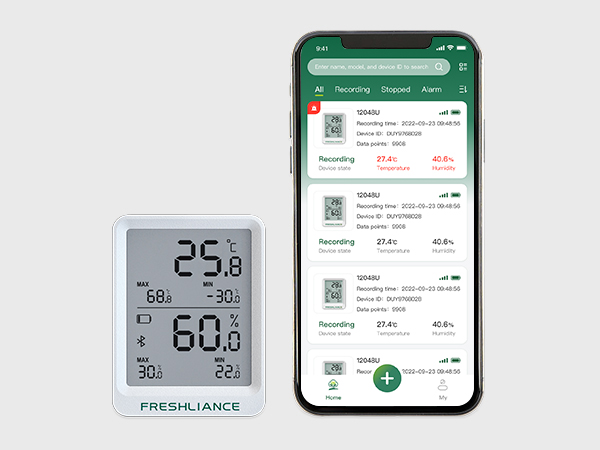

6. Free data storage and export, our Bluetooth HACCP temperature data loggers upload data to the app when connected via Bluetooth. Enjoy online data storage viewing where historical data can be viewed and exported in PDF or CSV format
7. Large memory capacity, maximum 65000 readings for more data storage
Model |
BlueTag TH20 |
Memory Capacity |
65000 readings |
Shelf Life |
1 year |
Start Delay |
0 minute-72 hours |
Operating Life |
200 days |
Logging Interval |
1 minute-99 minutes |
Wireless Connection |
Bluetooth 5.2, NFC (optional) |
Battery |
3.0V CR2032 lithium battery |
APP Language |
English, Chinese |
APP OS |
Android |
Temperature Unit |
℃, ℉ |
Report Format |
PDF & CSV |
Temperature Range |
-30℃~+70℃ |
Temperature Accuracy |
±0.5℃ at full range (-30℃ to +70℃) |
Humidity Range |
0~100%RH |
Humidity Accuracy |
±3.0%RH |
Weight |
36.5g |
Dimension |
62mm*47mm*13mm |
Installation |
3M stickers, magnetic |
Certification |
CE, CE-RED, EN12830 |

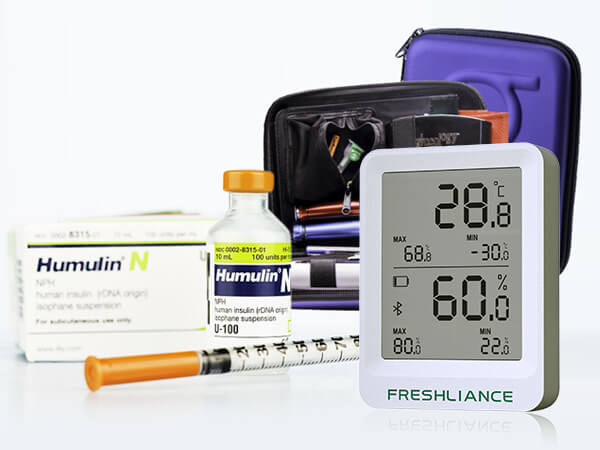

BlueTag TH20 HACCP Bluetooth Temperature and Humidity Data Logger is very suitable for low-temperature logistics, such as cold chain vehicles, cold storage, refrigerators, etc. This Bluetooth temperature and humidity sensor is also very suitable for indoor temperature and humidity monitoring, such as indoor temperature and humidity detection, refrigerator food preservation, pet breeding, flower breeding, musical instrument maintenance, etc. It is used in pharmacies or laboratories such as pharmacy medicine cabinets, vaccine warehouses, drug warehouses, experimental material warehouses, and experimental environment testing. It can realize the automatic monitoring, tracking and recording of the whole process of temperature.
