BlueTag TH10B/TH10R Bluetooth Temperature Humidity Data Logger

Temperature range: -30℃~+70℃ (Internal sensor) ; -40℃~+85℃ (External probe)

Temperature Accuracy: ±0.5℃ F.S.

Run Days:

Paired by Bluetooth and review history by APP
Support Android and IOS
Comprehensive data analysis, filtration and graphing
Data synchronization among multiple users.
Free data cloud storage for 2 years
Up to three monitoring channels (External probes optional)
Flat ribbon cable optional (0.3mm thick and 7.5mm wide)

Introduction

BlueTag TH10B/TH10R is a multi-use and configurable temperature and humidity data logger based on Bluetooth wireless communication technology, which makes it more convenient for users to view both real-time and historical data on the APP, without unpacking the goods. With configurable parameters and optional internal and external probes, this logger can be used in a variety of fields, such as medicine, food, smart home.

Features

1, Paired by Bluetooth and review history by APP
When in range, users can easily pair this Bluetooth data logger with our Tkeeper APP via Bluetooth communication, and then use the APP to remotely program this data logger and view all recorded data, no need to open the container or vehicles, etc., so as to minimize the adverse effect on the cold chain monitoring.

2, Comprehensive data analysis, filtration and graphing
This APP features powerful data analysis, filtration and graphing functionality, with the automatically analyzed results of max., min., avg., and MKT value, etc., so as to help users to view all data more intuitively.

3, Data synchronization among multiple users
This collaborative APP supports multiple users to view online simultaneously. When one user uses the APP to view the recorded data of the data logger, all the data viewed will be automatically synchronized to other users.

4, Free data cloud storage for 2 years
All data can be stored at our cloud platform for 2 years at no cost.

5, Support Android and IOS
This APP is available in Android and iOS versions.

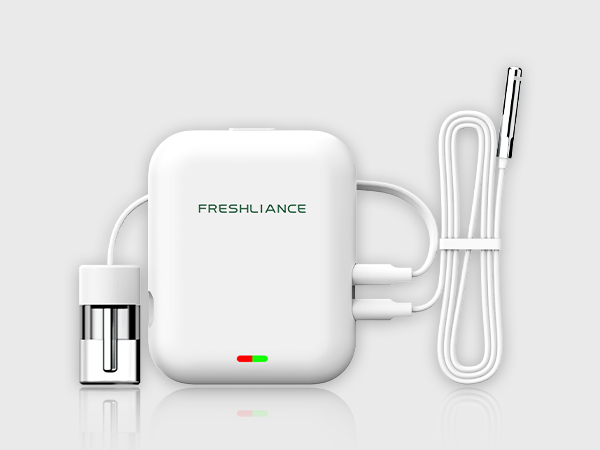

6, Up to three monitoring channels (External probes optional)
In addition to the built-in sensor, this Bluetooth data logger can also be optionally equipped with one or two external probes for temperature and humidity monitoring. And the data recorded by each sensor/probe will be separately recorded, viewed and exported.

7, Flat ribbon cable optional
This flat ribbon cable, 0.3mm thick and 7.5mm wide, is ultra thin and slim, convenient for wiring and space saving. This cable is designed to be 2m long and other lengths are customizable. Besides, this cable features high temperature resistance, fast data transmission, and high softness and foldability.

Specification

Model

BlueTag TH10B

BlueTag TH10R

External Probe Type

N/A

Temperature probe

Temperature and humidity probe

Temperature Range

-30℃~+70℃

(Built-in sensor only)

-30℃~+70℃

(Internal/External probe)

Temperature Accuracy

±0.5℃ F.S.

Temperature Units

℃, ℉

Humidity Range

0-100%RH

Humidity Accuracy

±3.0%RH

Alarms

High and low alarms, max. 6 alarm points per sensor/probe

APP OS

Android/IOS

Report

PDF/CSV

Connection

Bluetooth 5.2

Start Delay

0min ~72h

Logging Interval

1min ~99min

APP Language

Chinese, English

Memory Capacity

Max. 20,000 readings per probe

Screen Size

66mm*57mm*2mm

Device Dimensions

83mm*68mm*20.5mm

Battery

2*Replaceable AAA batteries

Rechargeable lithium battery

Installation

Hanging, folding stand

Magnetic suction, hanging, folding stand

Weight

85g

90g (Main device)

Applications

BlueTag TH10B/TH10R Bluetooth temperature humidity data logger is easy to use and can monitor and record environmental temperature and humidity around the clock. With the Bluetooth communication technology, the user can remotely view and analyze both real time and historical data. Moreover, this Bluetooth data logger can be connected to the gateway device as needed, to adapt to more application environments.

This Bluetooth temperature sensor can be applied in the fields like smart house, food, archives management, drug storage, greenhouse, animal farming.

For example, in the archives management, paper articles are extremely sensitive to the temperature and humidity fluctuation. Improper environmental conditions may seriously shorten the retention period of such articles. This humidity temperature logger can help the user to keep stable temperature and humidity and avoid insect attack, etc.

In drugs management, some drugs have strict requirements for temperature and humidity. Any fluctuations may cause loss of efficacy or spoilage. This Bluetooth temperature monitor will be an ideal instrument to keep the drugs within proper temperature and humidity range, without opening the package or the storage cabinet, etc.
