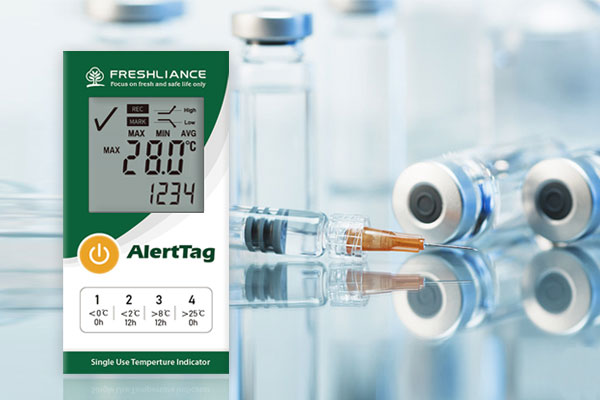

AlertTag T10 LCD Disposable Temperature Monitor/Indicator

Temperature range: -30℃~+70℃ (-22℉~158℉)

Temperature Accuracy: ±0.5℃ at full range (-30℃ to +70℃)

Run Days: 180 days

AlertTag T10 LCD Disposable Temperature Monitor/Indicator is a disposable electronic temperature indicator for monitoring temperature-sensitive products during cold chain logistics transportation, storage and handling. For temperatures between -30°C and +70°C, up to 4 different alarm settings can be programmed. When the ambient temperature exceeds the preset temperature, the corresponding alarm point 1, 2, 3 or 4 will be displayed on the screen for alarm.

Introduction

The AlertTag T10 LCD Disposable Temperature Monitor/Indicator is cost-effective, lasts up to 180 working days, and has a 2-year shelf life. The temperature monitoring accuracy is within ±0.5℃ at full range (-30℃ to +70℃). There are different models for customers to choose, 7 days, 15 days, 30 days, 60 days, 90 days, 120 days or even 180 days.

Features

1. Humanized LCD screen, you can check the real-time temperature value, accumulated alarm duration, and alarm status.

2. When the temperature exceeds the preset value, the corresponding alarm point 1, 2, 3, or 4 will be displayed on the screen for alarm.

3. This single-use indicator is cost-effective and lasts up to 180 working days with a 2-year shelf life. The temperature monitoring accuracy is within ±0.5℃ at full range (-30℃ to +70℃).

4. The electronic indicator is small in size, thin in thickness, and light in weight. When transporting some temperature-sensitive products, the temperature can be monitored directly on the packaging.

5. The indicator has passed CE certification, complies with EN12830 standard, and the protection level is IP68.

Specification

Model

AlertTag T10

Type

Disposable

Display

LCD screen

Run Days

180 days

Logging Interval

≥10 seconds

Start Delay

10 minutes (Customizable)

Protection Grade

IP68

Certification

CE, EN12830

Weight

13.2g

Dimension

70mm* 36mm* 5mm

Temperature Accuracy

±0.5℃ at full range (-30℃ to +70℃)

Temperature Range

-30℃~+70℃ (-22℉~158℉)

Alarm Range (Customizable)

1-L1:<0℃

2-L2:<2℃(Accumulated 12h)

3-H1:>8℃(Accumulated 12h)

4-H2:>25℃

Battery

3.0V CR2032 lithium battery

Applications

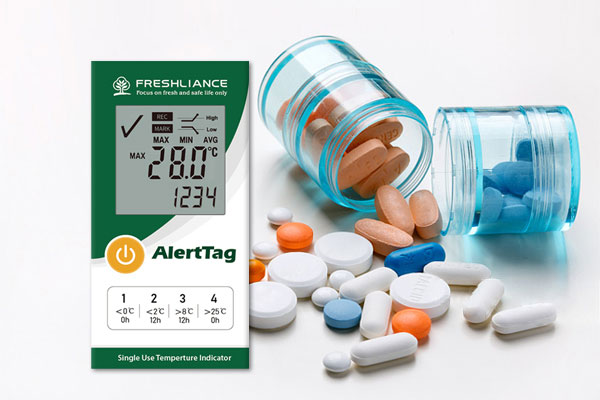

AlertTag T10 LCD Disposable Temperature Monitor/Indicator is mainly developed for the pharmaceutical industry, including shipment monitoring of blood, biopharmaceuticals, life sciences, biological samples, blood cold chain transportation, diagnostic reagents, etc., but it can also be used for the monitoring of fruits, vegetables and agricultural products temperature monitoring.
